Standard Air Cylinders (Round Type）
Air Cylinder JCM/JCDM
 | ・Overall length shortened by up to 97 mm ・Weight reduced by up to 54% (0.69 kg→0.32 kg) ・Various cover types are available. ・Port sizes: M5 and Rc1/8 ・Male and female rod ends are available. ・With auto switch (JCDM series: JCDM) |
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | JCM | Double acting single rod | 20，25，32，40 |

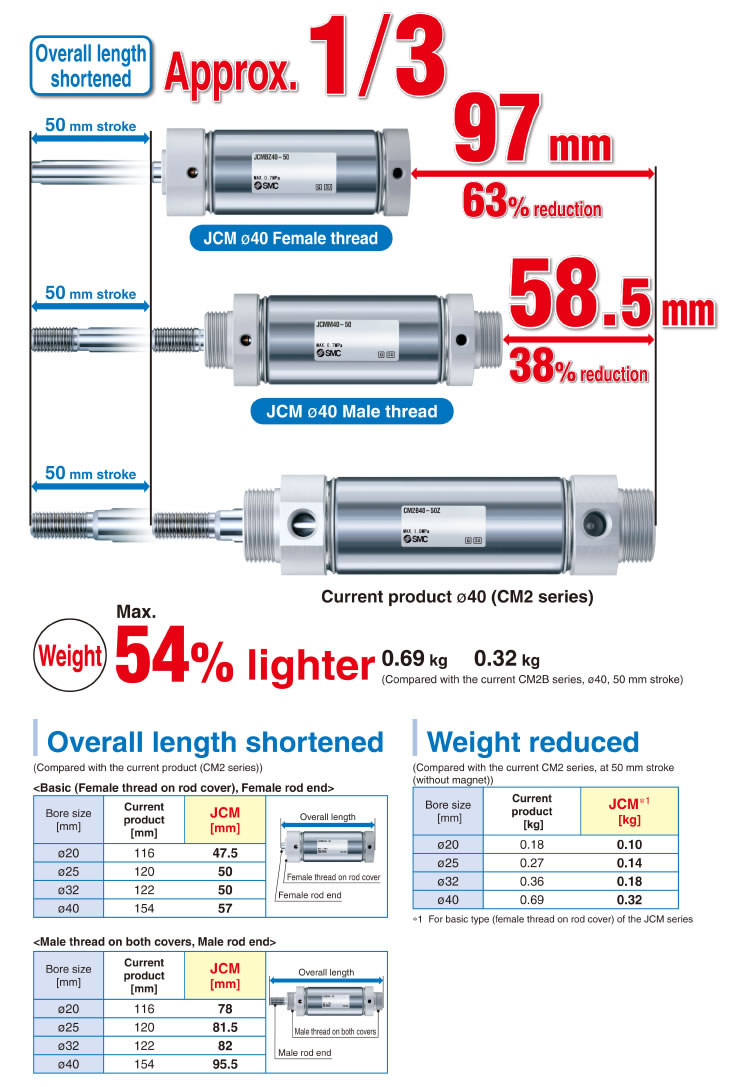

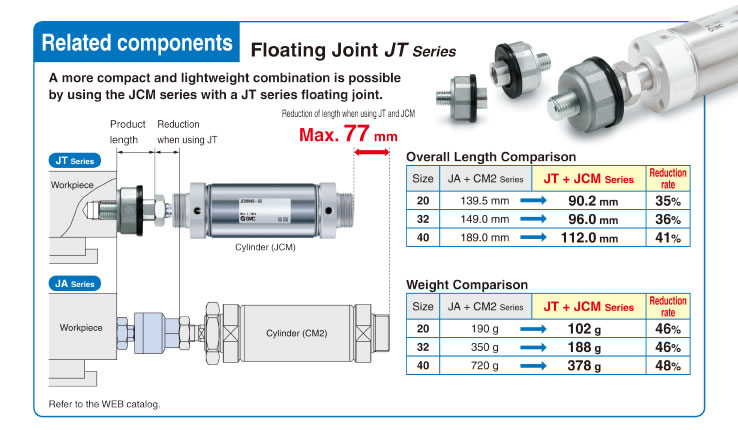

■Overall length shortened 97 mm
(Compared with the current product (CM2 series))
■Weight Max. 54% lighter 0.69 kg ➡ 0.32 kg
(Compared with the current CM2 series, at 50 mm stroke (without magnet))

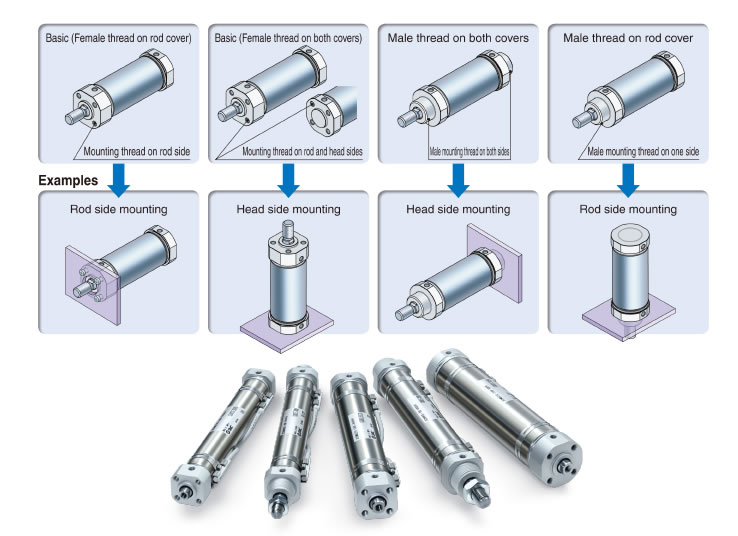

■Various cover types available
Direct mounting is possible.

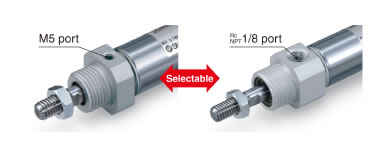

■Port size: M5 and Rc NPT1/8
available
available
With M5 port, the overall length is maximum 13 mm shorter (for ø20).

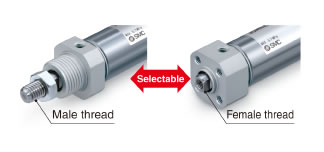

■Male and female rod ends
available
available
Male and female threads available.

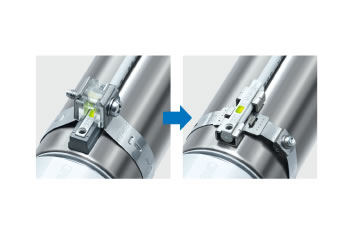

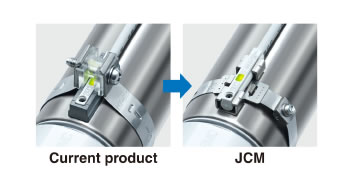

■New mounting band for auto switch

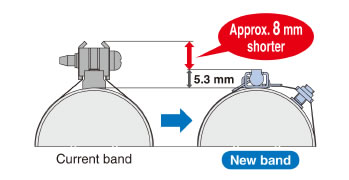

Mounting height approx. 8 mm shorter
Mounting height shortened
Improved visibility of indicator LED
There are no parts near the indicator LED, so visibility is improved.
Improved mounting workability
To mount the auto switch, simply insert it and position it correctly.
Air Cylinder JCM/JCDM
